OpenStack’s Bug Management

This post intends to give you enough background to play an active part in working with bugs in OpenStack. This includes an understanding of the basic life cycle a bug goes through and in which state you can contribute in which way. It also clarifies some possible misunderstandings and gives a few best practices. In general, the bugs of a project (like Nova, Cinder, Neutron and others) can be found in our issue tracker Launchpad. The lists of bugs are available at https://bugs.launchpad.net/<projectname> for example https://bugs.launchpad.net/nova for the Nova project.

Change history:

Date Change description
2015-12-01 The first release
2016-03-05 Added a change history

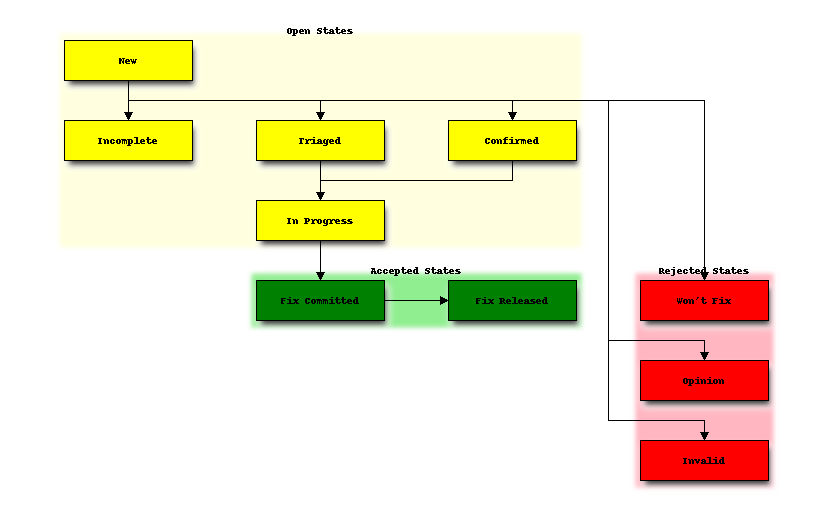

Overview of the Life Cycle

This is the most basic (and slightly simplified) life cycle of a bug:

Name Description
New The bug was just created and no one has looked at it yet
Incomplete The bug is waiting on input from the reporter (other issue trackers name this status NEEDINFO)
Triaged The bug comments contain a full analysis on how to properly fix the issue
Confirmed The bug was reproduced or confirmed as a genuine bug from someone other than the reporter
In Progress The assignee of the bug is working on a fix
Fix Committed The branch containing the fix was merged into master
Fix Released The fix is included in the proposed/* branch, a past milestone or a past release
Won’t Fix This is a valid issue, but we don’t intend to fix that
Opinion This is a valid issue, but it is the way it should be
Invalid This is not a bug, could be a feature request

The purpose of an issue tracker is to improve the quality of the project. An improvement has happened when the bug is in an “Accepted Status” like Fix Committed or Fix Released.

A bug ending up in any of the “Rejected States” (Won't Fix, Opinion or Invalid) – which may happen for a variety of reasons including that the proposed bug is actually a result of operator error or is out of scope – arguably hasn’t directly improved the project. But it could suggest or make it clear that a concept is not as intuitive or well documented as it should be.

The “Open States” (New, Incomplete, Triaged, Confirmed and In Progress) call for ongoing effort of one or many contributors.

Reporting a New Bug

When reporting a bug please provide at least the minimal information necessary to enable another contributor to understand why you think that this is an issue. We have a lot of contributors, each one with a different background, with a specific set of knowledge and with a different depth in OpenStack. It is unlikely that everyone understands instantly why an incident or workflow didn’t pass your expectation.

A possible template, which helps others to understand you, could be:

Description
===========
Some prose which explains more in detail what this bug report is
about. If the headline of this report is descriptive enough,
skip this section.

Steps to reproduce
==================
A chronological list of steps which will bring off the
issue you noticed:
* I did X
* then I did Y
* then I did Z
A list of openstack client commands would be the most
descriptive example.

Expected result
===============
After the execution of the steps above, what should have
happened if the issue wasn't present?

Actual result
=============
What happened instead of the expected result?
How did the issue look like?

Environment
===========
1. Exact version of OpenStack you are running. See the following
   list for all releases: http://docs.openstack.org/releases/
   For the current stable release "Liberty" it is:
   http://docs.openstack.org/releases/releases/liberty.html

    If this is from a distro please provide
        $ dpkg -l | grep <projectname>
        or
        $ rpm -ql | grep <projectname>
    If this is from git, please provide
        $ git log -1

2. Which storage type did you use?
   (For example: Ceph, LVM, GPFS, ...)

3. Which networking type did you use?
   (For example: nova-network, Neutron with OpenVSwitch, ...)

Logs
====

The tool *sosreport* has support for some OpenStack projects.
It's worth having a look at it. For example, if you want to collect
the logs of a compute node you would execute:

    $ sudo sosreport -o openstack_nova --batch

on that compute node. Attach the logs to this bug report.

For a more detailed rationale why this information is necessary read the Bug Filing Recommendations from the OpenStack wiki.

Tooling Support

When you report a bug you will face some typical issue which can be solved with appropriate tooling support. Below are the situations you will most likely encounter in your role as bug reporter.

Q: I want to paste logs or console commands or config files in my bug report, what do I use?

A: Try pastebin. It’s easy to read and provides a lot of preconfigured highlightings. Just reference from your bug description to the pastebin link.

Q: I want to show a console session (where possibly timing is relevant). How do I link to that in my bug report?

A: Try showterm. It records your console session and replays it with all input and output in the exact timing it happened. Just reference from your bug description to the showterm link.

Security

If you have found a bug which shows a vulnerability and could therefore be a threat to the security of OpenStack, please contact the Vulnerability Management Team. Also, when you report the bug, ensure that you mark the bug as a security bug. This bug will then be private and only accessible to you and the Vulnerability Management Team. This stalls the exploit of this vulnerability and gives the team more time to react appropriately.

Status and Contributor Responsibility

We can distinguish among multiple roles in the bug process. A contributor can have more than one role:

  • reporter: Discovered the bug and created the entry in Launchpad.
  • triager: Checks new bugs for validity and makes a presorting (see Tags). They are also encouraged to take part in:
    • solving inconsistencies (see Status and Fields)
    • and cleanup (the projects define their own rules for that).
  • bug-supervisor: Is aware of the “big picture” of the bugs and sets the importance of this bug related to the overall bugs.
  • assignee: Responsible for developing a patch for this bug.
  • release mgmt.: An (automated) entity which tracks the committed fix of a bug.

The following table should be read like:

The bug has the status [...] and in the role of a/an [...], I am supposed to work with this bug if there is an ‘x’.:
  reporter triager supervisor assignee release-mgmt
New   x
Incomplete x
Triaged     x
Confirmed     x
In Progress       x
Fix Committed         x
Fix Released         x
Won’t Fix x
Opinion x
Invalid x

Examples:

  1. If you are the bug reporter and you get a notification that the state of the bug is Incomplete, please read the comments of the bug and provide the requested necessary information. After that, set the status back to New.
  2. If you see a New bug and could reproduce the issue, you can set the state to Confirmed.
  3. If you see a New bug and know where the issue has its root cause, label the bug with one or more of the tags (see Tags)
  4. If you are the assignee of a bug, you’re expected to provide a patch in a reasonably timely manner. If you think you’re incorrectly assigned, move the bug state back to the most recent valid state and remove yourself as assignee, so another person can take it.
  5. If you are the bug reporter and the state of the bug is Won't Fix or Opinion or Invalid, please read the rationale of the contributor who set the the bug to this state. If you don’t agree with the provided rationale, it’s fine to set the status to New again and explain why you don’t agree.
  6. If you are a bug-supervisor, please ensure that Triaged and Confirmed bugs are prioritized.

Status and Fields

Launchpad provides a lot of fields for a bug entry. This makes the sorting and querying of bugs easier and is the base for release management. Not every combination of bug status and bug fields makes sense. As a guideline, read the following table as

The bug has the status [...]. A bug in this status should have the fields [...] set. I should be in the role of a [...] to set these fields.:
Status Fields which should be set Contributor Role
New title, description, tags, affects reporter, triager
Incomplete title, description, tags, affects reporter
Triaged title, description, tags, affects Importance bug-supervisor
Confirmed title, description, tags, affects Importance bug-supervisor
In Progress title, description, tags, affects Importance, Assigned to assignee
Fix Committed title, description, tags, affects Importance, Assigned to N/A
Fix Released title, description, tags, affects Importance, Assigned to, Milestone release mgmt.
Won’t Fix N/A N/A
Opinion N/A N/A
Invalid N/A N/A

Note

Only the bug-supervisor sets the importance of a bug. The bug-supervisors are the core reviewers and a group of volunteers. In other words, usually you are not supposed to set Importance or Milestone.

Status Transitions Details

As a bug is moved along the process to being fixed, some bug state transitions can lead to confusion to contributors. The following are examples of how some of these common state transitions and how they should be handled.

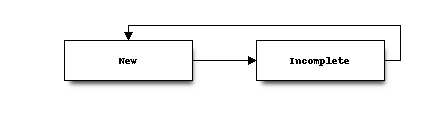

If there is not enough information provided, contributors switch the bug from New to Incomplete and ask the reporters for more details. When the reporters provide that information, they switch the status back to New.

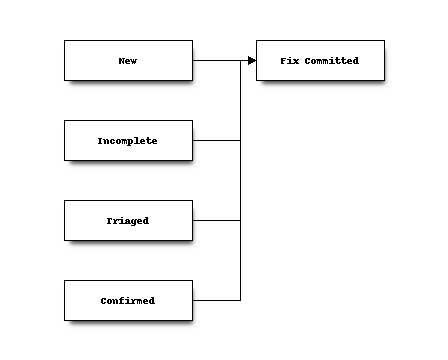

Sometimes a bug is reported and the issue is solved by another patch which wasn’t aware of the specific bug. It’s totally acceptable to set this bug to Fix Committed and link to the patch which solved it. This reduces the monitoring effort for bugs in “Open States” whereby other bugs can get more focus.

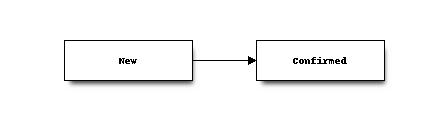

The issue was reproduced by someone other than the reporter. You don’t need to be in the role of a “bug-supervisor” to do that. Every contributor is encouraged to do so.

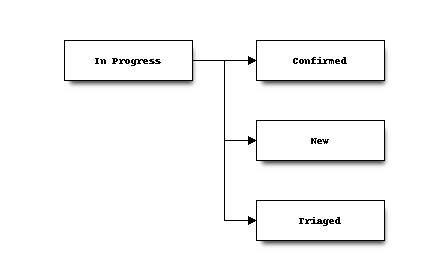

Sometimes an issue is assigned and set to In Progress but there is no progress in a long time for a variety of reasons, for example:

  • the review for that issue was abandoned
  • the was no review for that issue
  • the review was “left alone” with a -1

To enable other contributors to work on that issue, remove the assignee and set the status to the last known before it was set to In Progress. Every project will handle that policy in a somewhat different way.

Contributions

There are several key tasks with regards to bugs that anyone can do:

  1. Tag New bugs with the project specific tags (see Tags).
  2. Confirm new bugs: When a bug is filed, it is set to the New status. A New bug can be marked Confirmed once it has been reproduced and is thus confirmed as genuine.
  3. Solve inconsistencies: Make sure bugs are Confirmed, and if assigned that they are marked In Progress (see Status and Fields)
  4. Check Incomplete bugs: See if information that caused them to be marked Incomplete has been provided, determine if more information is required and provide reminders to the bug reporter if they haven’t responded after 2-4 weeks.
  5. Check stale In Progress bugs: Work with assignee of bugs to determine if the bug is still being worked on, if not, unassign them and mark them back to the last known state.

Tags

Launchpad provides Tags. They are a way to label bugs with certain keywords to enable better sorting in one or more categories. Because some of the projects are so huge and span multiple layers, services and components, it is impossible to be an expert in each of those areas. The tagging of a bug enables contributors to create a query for bugs to which they can contribute their expertise. Each project has its own set of tags and an overview can be found in the wiki.

Best Practices

Discussions in the issue tracker:

The longer the discussion gets and the more contributors take part, the more complicated it will get to understand who is talking to whom about what. If you want to answer on a comment from another contributor, try to use this as the first line in your answer:

@<name> in reply to comment #<N>:

This makes it also easier in notification e-mails to spot that a reaction is necessary. Unfortunately Launchpad doesn’t support this in an automated way.

Conclusion

This post should have given you an overview how the bug management in OpenStack is (usually) done. Although this will differ from project to project it should give you a good start. There are ongoing efforts to move away from Launchpad to another platform, but I’m confident that the overall way how to deal with bugs won’t be differ too much to what is described in this post.

Note

The content of this post was initially intended to be part of the official docs of OpenStack but there was no project which had the right scope for that. See the nova review and the infra-manual review for more details.
